Goilips Extreme Temperature Protection Solution for Rail Transit and Wind Power

Overview

Outdoor rail transit systems such as high-speed rail and metro trackside signal cabinets, as well as wind turbines in alpine or high-altitude regions, expose communication equipment to severe natural environments.

Outdoor and high-altitude equipment boxes experience large day-night temperature swings, seasonal cold and heat extremes, and frequent mechanical vibration. Ordinary commercial-grade modules, and even some insufficiently screened industrial modules, can suffer temperature-induced wavelength drift, optical power attenuation, and OSNR degradation, leading to link drops, rising bit error rates, and failures in CBTC or wind-turbine monitoring systems.

This solution uses the Goilips I-Temp industrial wide-temperature optical module portfolio. Through strict 500-hour high-temperature/high-humidity aging, temperature cycling, intelligent temperature compensation algorithms, and rugged sealed packaging, it keeps stable optical-electrical performance and near-zero temperature-drift output across -40°C to +85°C.

Applications

Trackside Signal Cabinets

For fanless sealed trackside control cabinets, CBTC train-control systems, and video-surveillance transmission networks along high-speed rail, passenger rail, and urban rail lines.

Wind Turbine Nacelle and Tower Base

For nacelle and tower-base control cabinets installed tens to hundreds of meters above ground, resisting strong wind, extreme cold, and large temperature fluctuations.

Solar and Power Grid in Extreme Environments

For plateau, alpine, and desert power communication environments where day-night temperature variation can exceed 40°C.

Deployment & Architecture

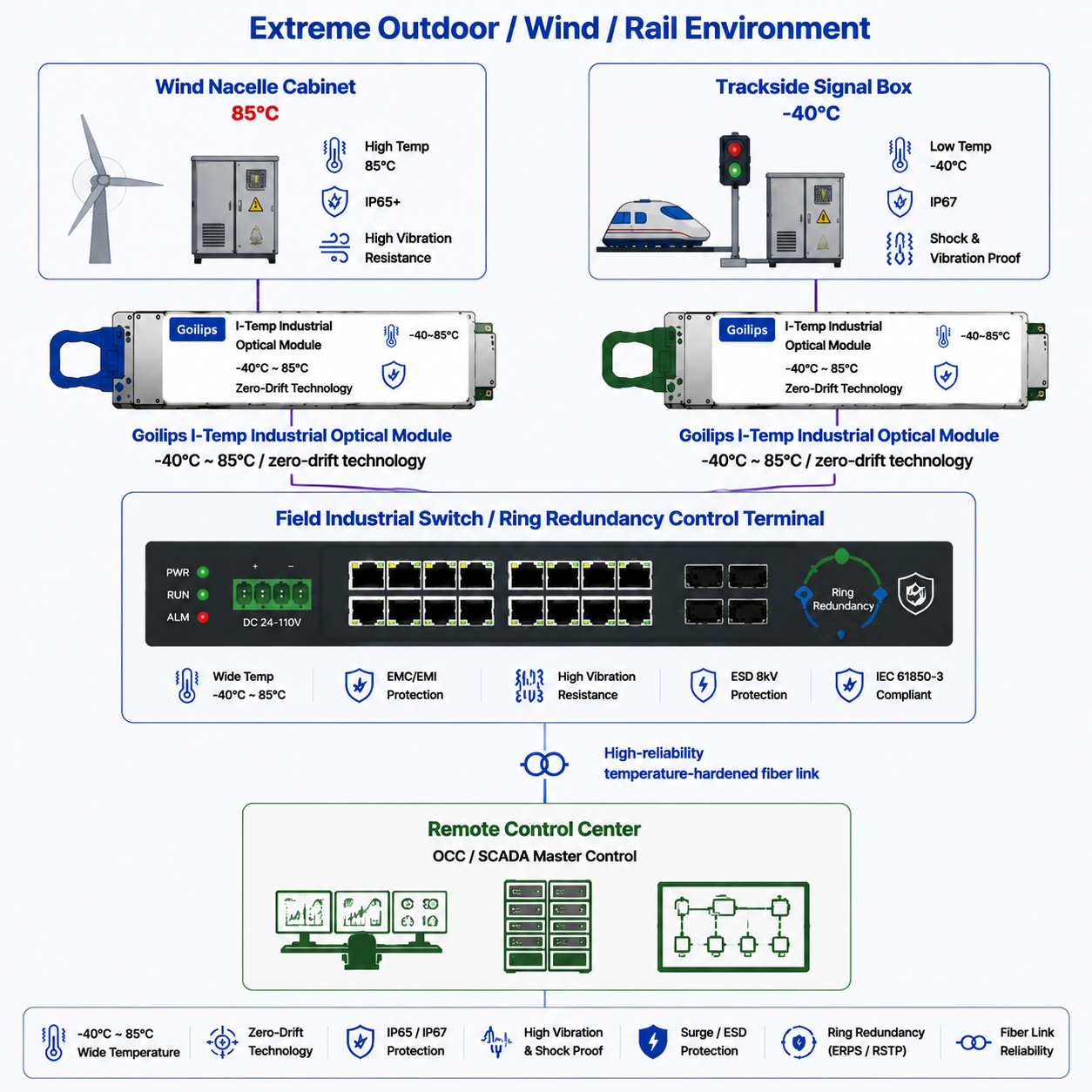

Between wind-turbine nacelle or tower PLCs, trackside communication switches, and remote control centers (OCC/SCADA), Goilips I-Temp industrial optical modules build highly reliable industrial optical links resistant to temperature drift.

Goilips Extreme-Temperature-Swing Solution for Rail Transit & Wind Power

Trackside CBTC / Signal Cabinet

Core Deployment：Goilips I-Temp SFP/SFP+ supporting 1.25G / 10G over LC dual-fiber or single-fiber BiDi interfaces.

Advantage：Operates from -40°C to +85°C and passes 500-hour high/low temperature cycling shock and vibration tests.

Wind Nacelle / Tower Cabinet

Core Deployment：Goilips I-Temp SFP28 supporting 10G / 25G over LC dual-fiber interfaces.

Advantage：Designed for -40°C to +85°C operation with 85°C / 85% RH double-85 damp-heat aging tests.

Hardware Dynamic Temperature Compensation

Core Deployment：Built-in high-precision digital temperature sensor and dedicated driver IC automatically tune bias current and modulation current.

Advantage：Keeps laser wavelength drift below ±0.5nm across the full temperature range, preventing optical power attenuation and bit errors caused by drift.

Ruggedized Sealed and Anti-Vibration Packaging

Core Deployment：Uses industrial hermetic TO-Can / BOX packaging, conformal-coated PCB, reinforced golden fingers, and anti-vibration wire-bonding.

Advantage：Blocks moisture, salt fog, and mildew while withstanding continuous vibration from turbines and passing trains.

Key Benefits

1

Continuous Operation in Extreme Weather

Prevents packet loss and link drops caused by temperature drift in severe winter or hot summer, protecting wind-power and rail signaling system stability.

2

Lower High-Altitude and Field Maintenance Cost

Wind nacelle and trackside replacements are expensive and disruptive. Goilips I-Temp long-life reliability can reduce field maintenance failure rates by more than 90%.

3

One Module Family for Nationwide Environments

A single Goilips industrial wide-temperature module family can cover projects from northeast alpine regions to hot southern coastal areas, simplifying procurement and spare-parts management.
